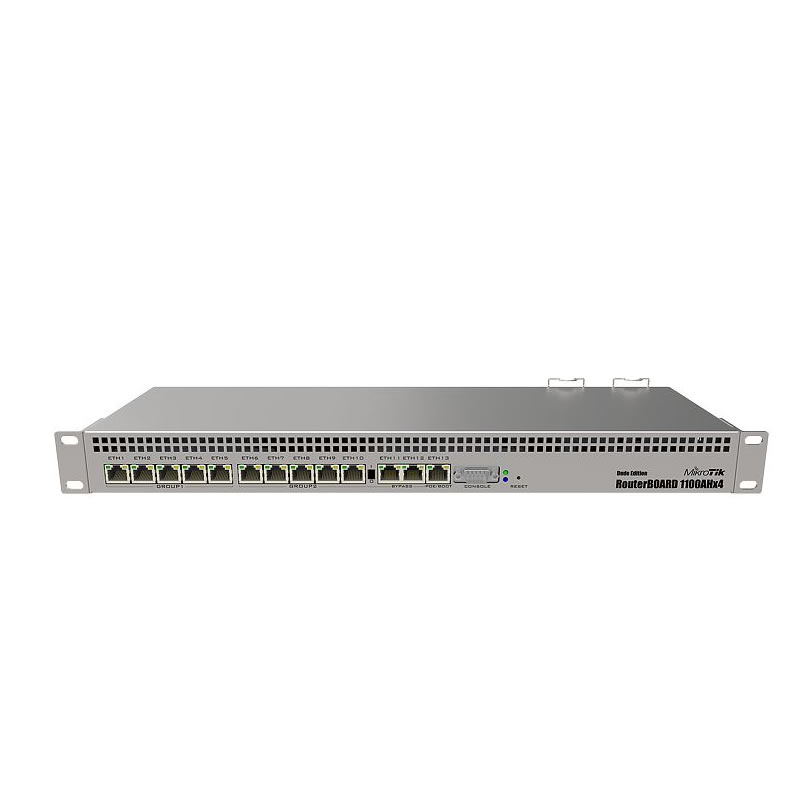

RB1100AHx4 Dude Edition

RB1100AHx4Dude edition

Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

Product Price: USD 369.00

Product Features

Product codeRB1100Dx4
ArchitectureARM 32bit
CPU core count4
CPU nominal frequency1.4 GHz
Dimensions444 x 148 x 47 mm
Size of RAM1 GB
Dimensions444 x 148 x 47 mm
Storage size128 MB
PoE in802.3af/at
10/100/1000 Ethernet ports13
Extended storage60GB M.2 SSD included
M.2 slots2
Memory card typemicroSD
Memory Cards1
SATA ports1
Serial portRS232
