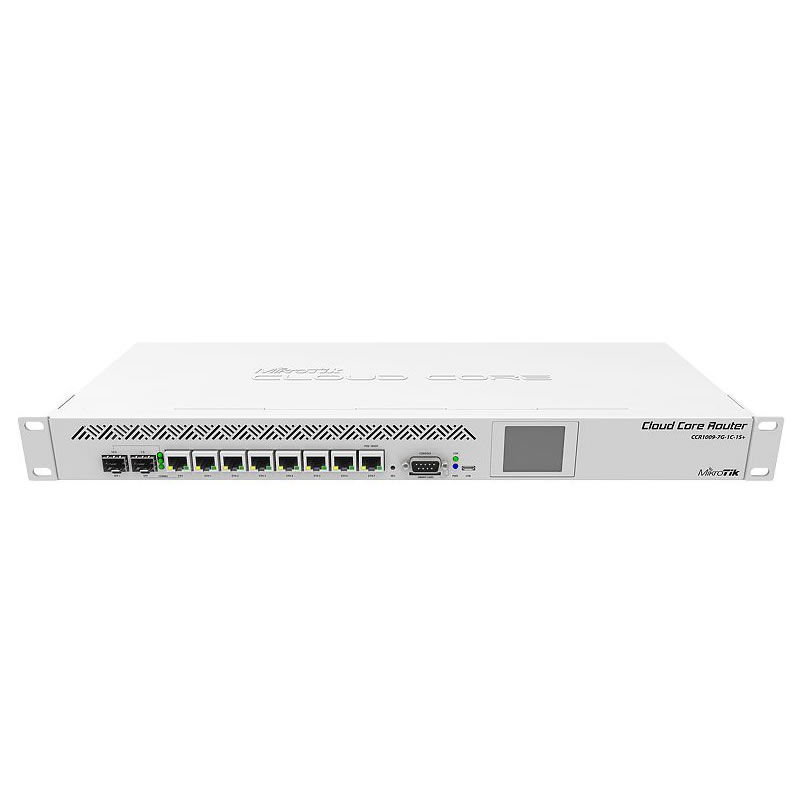

CCR1009-7G-1C-1S+

CCR1009-7G-1G-1S+

1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6

No switch-chip – the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support – this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput – because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

Product Price: USD 515.00

Product Features

Product codeCCR1009-7G-1C-1S+
ArchitectureTILE
CPUTLR4-00980
CPU core count9
CPU nominal frequency1.2 GHz
Dimensions444 x 175 x 47 mm
License level6
Operating SystemRouterOS
Size of RAM2 GB
Storage size128 MB
Storage typeNAND
10/100/1000 Ethernet ports7
Ethernet Combo ports1
